ANALYTICAL BALANCE INDIA

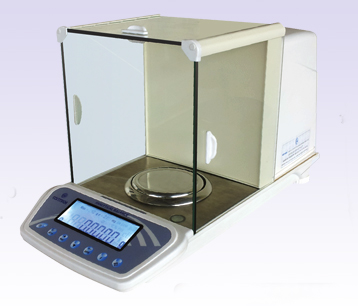

ANALYTICAL (Indirect Loading) BALANCES 0.00001g to 300g

Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

ANALYTICAL (Indirect Loading) BALANCES 0.00001g to 300g

Backlite LCD Display
Customized, large, attractive LCD with multiparameter display illuminated by white backlite.
Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter.
GSM function
GSM function for paper & cloth quality checking.
Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing
Display of Reference weight, sample weight, % of sample with respect to reference weight
Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
0,1,2,3 modes for various formats. Pause in case data storage capacity in a Printer is less.
External Calibration
Using preset weights.
Known weights can be corrected to+15 counts.
Response Time:
User selectable Slow / Normal /Fast.
Stability Band Width
Stability indicator appears on display with counts variation+1,+2,+3,+4.
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Specifications:
Indirect Loading Analytical / Semi Micro Balances without motorized internal calibration

MODELS CAS-44 CAS-84 CAS-164 CAS-234 CAS-304
CAPACITY 40g 80g 160g 230g 300g
READABILITY 0.0001g 0.0001g 0.0001g 0.0001g 0.0001g
REPEATABILITY (+/-) 0.1mg 0.1mg 0.2mg 0.2mg 0.2mg
LINEARITY (+/-) 0.2mg 0.2mg 0.4mg 0.4mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm 100mm

The balance is supplied with Breeze shield as standard.

Specifications:
Indirect Loading Analytical / Semi Micro Balances with motorized internal calibration

MODELS CAI-35 CAI-44 CAI-84 CAI-164 CAI-234 CAI-304
CAPACITY 30g 40g 80g 160g 230g 300g
READABILITY 0.00001g 0.0001g 0.0001g 0.0001g 0.0001g 0.0001g
REPEATABILITY(+/-) 0.03mg 0.1mg 0.1mg 0.2mg 0.2mg 0.2mg
LINEARITY (+/-) 0.05mg 0.2mg 0.2mg 0.4mg 0.4mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm 100mm 100mm

The balance is supplied with Breeze shield & Internal Motorized calibration as standard.

Specifications :• Taring Range : Up to full capacity ? Response time : 3-5 seconds ? Power Req : 90-250V, 50/60Hz, 10 Watt ? Operating Temperature : 10 to 45 deg C

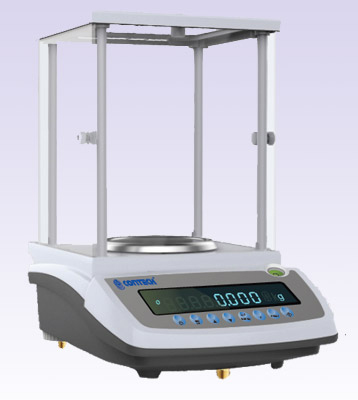

ANALYTICAL (Direct Loading) BALANCES 0.0001g to 220g

Contech High Precision Balances incorporate advanced Electro Magnetic Force Compensation (EMFC) technology for offering unmatched accuracy and reliability, coupled with unique ADC circuit with inbuilt temperature compensation to offer a very high stability upto a resolution of 6 million counts. All adjustment parameters are programmable to take care of any minor mismatch of different sub assemblies & Balances are configured with these parameters.

ANALYTICAL (Direct Loading) BALANCES 0.0001g to 220g

Backlite LCD Display
Customized, large, attractive LCD with multiparameter display illuminated by white backlite.
Bi directional RS 232 interface
RS 232 port with selectable baud rate 4800,9600. Various interface formats adopting this Balance in a setup to replace any other leading international brand Balance. Can be configured for an USB interface using optional RS 232 to USB converter.
GSM function
GSM function for paper & cloth quality checking.
Multiple Weighing Units
Grams, Ounces, Troy Ounces, Carats, Mommes, Pennyweights, Grains, tola, Mesghal, Chinese taels.
Percentage Weighing
Display of Reference weight, sample weight, % of sample with respect to reference weight
Piece Counting
Parts calibration using preset quantity of samples or programmable quantity. Automatic count correction for precise calibration.
Fill Mode
1 set point - Indication when sample weight exceeds the set limit.
2 set points Indication when the sample weight is between the lower & upper limits.
Accumulation
Storage of maximum 200 samples.
Multiple Printing Mode
0,1,2,3 modes for various formats. Pause in case data storage capacity in a Printer is less.
External Calibration
Using preset weights.
Known weights can be corrected to+15 counts.
Response Time:
User selectable Slow / Normal /Fast.
Stability Band Width
Stability indicator appears on display with counts variation+1,+2+3,+4.
Auto Zero Tracking
User selectable 0,1,2,3
Return to Zero Tracking
Variable: 0,1,2,3,4
Display Updation
Speed setting : Fast / Normal.

Specifications:
Indirect Loading Analytical / Semi Micro Balances without motorized internal calibration

MODELS CAC-34 CAC-64 CAC-124 CAC-224
CAPACITY 30g 60g 120g 220g
READABILITY 0.0001g 0.0001g 0.0001g 0.0001g
REPEATABILITY (+/-) 0.2mg 0.2mg 0.3mg 0.3mg
LINEARITY (+/-) 0.3mg 0.3mg 0.4mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm

The balance is supplied with Breeze shield as standard.

Specifications:
Indirect Loading Analytical / Semi Micro Balances with motorized internal calibration

MODELS CAI-34 CAI-64 CAI-124 CAI-224
CAPACITY 30g 60g 120g 220g
READABILITY 0.00001g 0.0001g 0.0001g 0.0001g
REPEATABILITY(+/-) 0.03mg 0.1mg 0.1mg 0.2mg
LINEARITY (+/-) 0.05mg 0.2mg 0.2mg 0.4mg
PAN SIZE 100mm 100mm 100mm 100mm

The balance is supplied with Breeze shield & Internal Motorized calibration as standard.

Specifications:
High Precision Balances With Motorized internal calibration

MODELS CAH-123 CAH-223 CAH-323 CAH-413 CAH-503 CAH-603 CAH-803
CAH-1003
CAPACITY 120g 220g 320g 410g 500g 600g 800g 1000g
READABILITY 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g 0.001g
REPEATABILITY (+/-) 0.001g 0.001g 0.001g 0.001g 0.002g 0.002g 0.002g 0.002g
LINEARITY (+/-) 0.001g 0.002g 0.002g 0.002g 0.002g 0.003g 0.004g 0.004g
PAN SIZE 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm

Specifications:
Taring Range : Up to full capacity Response time : 3-5 seconds Power Req : 90-250V, 50/60Hz, 10 Watt Operating Temperature : 10 to 45 deg C
